The allure of continuous cruising is the promise of freedom and self-sufficiency. However, that independence requires us to master our own resources. Above all, this means securing a safe and reliable water supply, chiefly through water filtration. It’s something we benefited from aboard Esper with our Schenker reverse osmosis water maker, allowing us to spend literally years away from a water source. Of course, we are now travelling through a different body of water. Although the canal appears to be an abundant source, its water is in fact a complex mixture of suspended solids, biological contaminants, and chemical residues. Turning this raw water into potable water suitable for drinking requires a robust, multi-stage system.
This guide is based on our initial research into building our water filtration system. It details a five-part purification system we could build, combining progressive filtration with ultraviolet sterilisation. We will delve into the science of each stage, explaining how it targets and removes specific contaminants to produce safe, clean water. Towards the end, we ask if this is enough to make canal water safe to drink and offer an additional line of defence. Furthermore, we have provided several sources for further reading.
The Challenge: Understanding Canal Water Contaminants
To design an effective water filtration solution, we must first understand exactly what we are up against. Canal water can contain:
- Particulates: Silt, clay, rust, and organic debris. These cause turbidity (cloudiness) and can shield microbes from disinfection.
- Microbiological Contaminants: This includes protozoan cysts, such as Giardia and Cryptosporidium[1][2], bacteria such as E. coli[3], and viruses. These pose the most immediate health risks.
- Chemical Contaminants: Runoff from agricultural land can introduce pesticides and herbicides. Industrial discharge and road runoff can add volatile organic compounds (VOCs), solvents, and heavy metals.[4][5] Chlorine is not typically a concern in canal water itself, but is relevant for taste and odour removal.
Our system will address these in a logical sequence, moving from large particles down to microscopic organisms.
The Five-Part Water Filtration Purification Process
This system employs four distinct filtration stages followed by a final sterilisation stage for an almost complete water filtration solution. Each component is chosen for its specific function, and their order of operation is critical to the system’s longevity and effectiveness.
Filtration Stages 1-4
| Stage | Filter Type | Micron Rating (Typical) | Primary Function & Contaminants Removed |
| 1 | Sediment Pre-Filter | 5 – 20 micron | Mechanical filtration of large particles (silt, sand, rust).[1] |
| 2 | Granular Activated Carbon (GAC) | N/A | Adsorption of chemicals (pesticides, VOCs), taste, and odour.[5] |
| 3 | Carbon Block | 1 – 5 micron | Secondary adsorption of chemicals, removal of fine sediment.[4][11] |
| 4 | Absolute Sub-Micron Filter | 1 micron (absolute) | Mechanical removal of protozoan cysts (Giardia, Cryptosporidium).[2][3] |

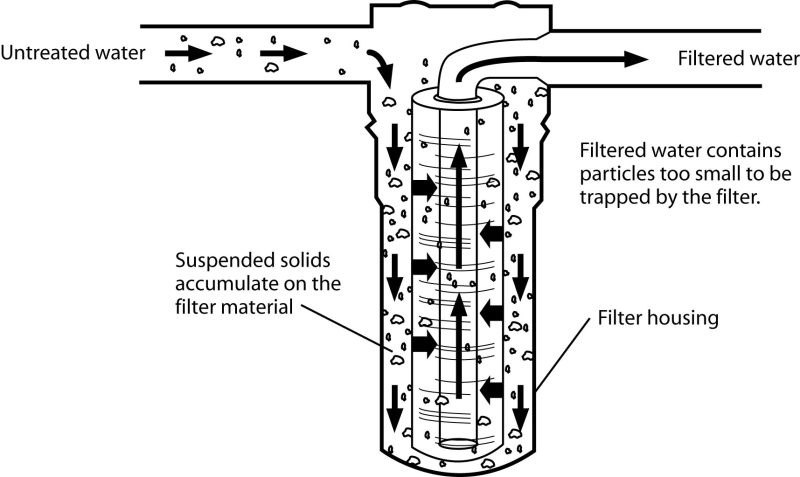

Stage 1: The Sediment Pre-Filter
- Filter Type: A sediment filter, typically made of spun polypropylene or pleated polyester, with a micron rating of 5 to 20 microns.
- Scientific Principle: This is a mechanical filter that works by physical exclusion. Its pores are large enough to allow high water flow but small enough to trap larger suspended particles, such as silt, sand, and rust.[1][6]
- Purpose: The primary role of this stage is to clarify the water and protect the subsequent, more sensitive filters. By removing the bulk of the sediment, it prevents the carbon filters from clogging prematurely, thereby extending their service life and ensuring their efficiency.[7]

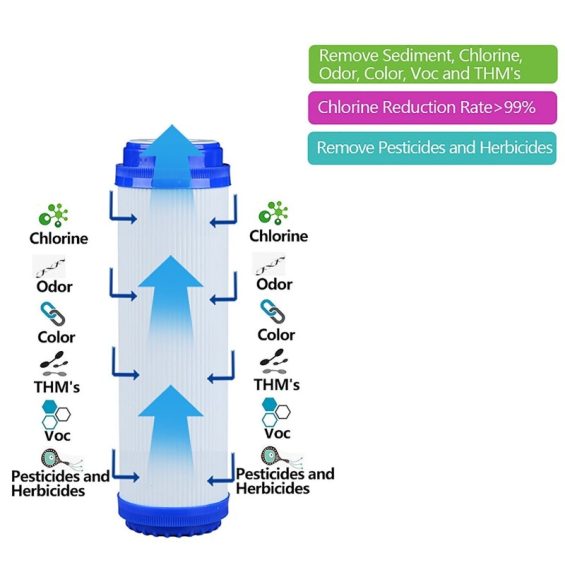

Stage 2: Granular Activated Carbon (GAC) Filter
- Filter Type: A cartridge containing granular activated carbon (GAC).
- Scientific Principle: This stage works through a process known as adsorption. (No, that’s not a typo. Absorption is a process in which a substance is drawn into the entire volume of another material, like a sponge soaking up water. The water fills the whole structure of the sponge. Adsorption is a surface-based process where molecules of a substance stick to the outer and inner surfaces of another material. Think of it like magnets sticking to the surface of a refrigerator; the magnets are only on the outside, not inside the metal itself.) Activated carbon is treated to create an incredibly vast network of pores, giving it a massive surface area. As water flows through, organic and chemical molecules, such as pesticides, herbicides, and many VOCs, are attracted to the carbon surface by van der Waals forces and become trapped.[4][8][9] GAC is effective at removing compounds that cause unpleasant tastes and odours.[9]
- Purpose: This is the primary stage for chemical contaminant removal. It targets dissolved organic compounds and significantly improves the water’s palatability (taste and smell).[9][10]
Stage 3: Carbon Block Filter
- Filter Type: A solid block of compressed, powdered activated carbon, typically with a micron rating of 5 microns or less.
- Scientific Principle: This filter also uses adsorption, but in a more compressed form. The dense structure of the block allows for a longer contact time between the water and the carbon, enhancing the removal of chemical contaminants that may have passed through the GAC filter.[4] Its uniform structure also prevents “channelling,” where water might find a path of least resistance through loose media. Additionally, its tight pore structure allows it to function as a secondary sediment filter, removing finer particulates.[1]
- Purpose: To provide a more thorough “polishing” of the water, removing residual chemical contaminants and very fine sediment. It also captures any carbon fines that the upstream GAC filter may have shed.
Stage 4: Absolute 1-Micron Filter
- Filter Type: An “absolute” 1-micron filter.
- Scientific Principle: This is a high-precision mechanical filter. The key term here is “absolute.” A nominal 1-micron filter might let 20-30% of 1-micron particles pass, whereas an absolute-rated filter will reliably remove at least 99.9% of particles of that size.[2][11] This pore size is small enough to physically block protozoan cysts, such as Giardia and Cryptosporidium, which are typically 2-15 microns in size.[2]
- Purpose: This stage is a critical barrier against larger microorganisms and, crucially, it ensures the water’s clarity. Removing this fine particulate matter is essential for the proper functioning of the final UV sterilisation stage.[7][12]

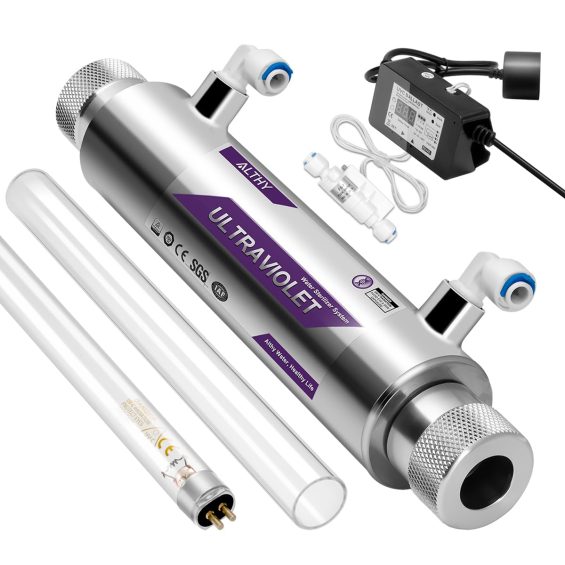

Stage 5: Ultraviolet (UV) Sterilisation
- Device Type: A UV sterilisation chamber.
- Scientific Principle: This is not a filter, but a disinfection method. Water flows through a chamber where it is exposed to intense ultraviolet light, specifically at a wavelength of 254 nanometers (UV-C). This light penetrates the cell walls of microorganisms, such as bacteria and viruses and scrambles their DNA and RNA.[7][12] This process, known as thymine dimerisation, renders the microbes incapable of reproducing or causing infection.[7]
- Purpose: To serve as the final firewall against microbiological threats. As UV does not physically remove contaminants, its effectiveness is highly dependent on the clarity of the water provided by the preceding four filtration stages.[13][14] Suspended particles can create “shadows” that shield microbes from the UV rays, which is why the 1-micron absolute filter is so important.[12][15]
Summary of Contaminant Removal
1. Removed by the Sediment Pre-Filter (Stage 1):
- Silt and Clay
- Sand
- Rust particles from pipes or river walls
- Visible dirt and debris
- Algae and other large organic matter
2. Removed by the Carbon Filters (Stages 2, & 3):
- Pesticides and Herbicides
- Volatile Organic Compounds (VOCs) from fuel/industrial runoff
- Chlorine (if present from water treatment discharge points)
- Solvents
- Compounds causing unpleasant tastes and odours
3. Removed by the Absolute 1-Micron Filter (Stage 4):
- Protozoan Cysts (which are physically larger than 1 micron)
- Giardia lamblia
- Cryptosporidium
- Any remaining fine silt or grit particles
4. Neutralized by the UV Sterilizer (Stage 5):
- Bacteria
- E. coli
- Campylobacter
- Salmonella
- Cholera-causing bacteria
- Viruses
- Norovirus
- Hepatitis A
- Rotavirus
- Mould and Fungi spores
The Critical Question: Does This Water Filtration System Make Canal Water Safe to Drink?
In theory, yes. A water filtration system built exactly to these specifications, with all components new and functioning perfectly, should render canal water safe to drink. The sediment and carbon filters remove the particulates and chemical contaminants that would interfere with the final stages. The 1-micron absolute filter provides a physical barrier against protozoan cysts, such as Giardia. The UV steriliser then delivers a dose of ultraviolet radiation sufficient to inactivate bacteria and viruses, making the water microbiologically sterile. On paper, it is a sound, multi-barrier approach.
In practice, I would still have significant reservations about drinking it without further safeguards. The system designed so far would be perfectly fine for general water consumption like showering and washing up, but I’d think twice about drinking it. My reluctance doesn’t stem from a flaw in the scientific principles, but from the unavoidable gap between a perfect system on a diagram and a working system on a boat after six months of use.
The Practical Problems and Limitations
A water filtration system is not a single component, but a chain of dependent processes. Its overall safety is only as strong as its weakest link at any given moment. Here are the practical reasons for my caution:
- Unseen Failure: The most critical component for microbiological safety is the UV steriliser. If the bulb burns out, if the power supply fails, or if the quartz sleeve that separates the bulb from the water becomes fouled with mineral scale or biofilm, its effectiveness drops to zero. Crucially, this failure is invisible. The water will still flow, look clear, and taste fine, but it will be biologically contaminated. Without a functioning flow-meter and an alarm on the UV unit (a feature often missing on cheaper models), we would have no way of knowing we are drinking unsafe water until it’s too late. UV lamps should be replaced annually as their intensity can degrade over time.
- High Maintenance: This system demands diligent maintenance. Filter cartridges have a finite lifespan, measured in both time and the volume of water filtered. In the highly variable conditions of a canal, a sediment filter could clog in weeks if you pass through a particularly silty stretch. Carbon filters can become saturated with chemicals, after which they cease to adsorb them effectively. Forgetting to change a filter or not having a spare on hand when one unexpectedly clogs can compromise the entire system.
- It Doesn’t Remove Everything: This system excels in its intended purpose, but it’s important to be aware of its limitations.
- Dissolved Solids & Heavy Metals: The carbon filters are not designed to remove dissolved inorganic compounds. This includes heavy metals like lead, mercury, or cadmium from industrial pollution, as well as high concentrations of nitrates or sulphates from agricultural runoff. These contaminants would pass straight through to your glass.
- Viruses: While the UV steriliser is the primary defence against viruses, there is no physical filtration barrier in this system to prevent them. Protozoan cysts are large (2-15 microns), but viruses can be as small as 0.02 microns. If the UV stage fails, there is no backup.
From Theoretically Safe To Practically Worry-Free

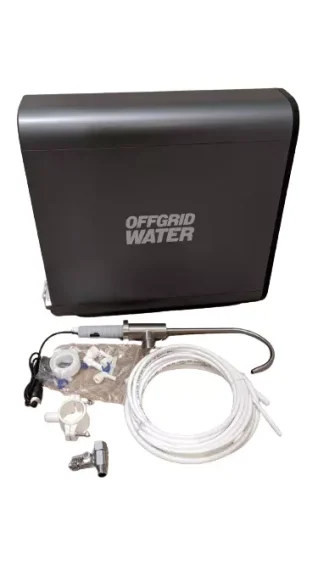

There is one last filter I would add as the ultimate firewall: reverse osmosis. This is the single biggest upgrade you can make for drinking water safety. It is typically installed under the sink to feed a separate, dedicated drinking water tap and addresses the key limitations of the previous system. Because the pores are so small, an RO membrane physically removes a vast spectrum of contaminants that the other filters cannot, including:
- Viruses
- Heavy metals (lead, arsenic, mercury)
- Nitrates, sulphates, and other dissolved solids
- Microplastics
An RO system, as the final step for our drinking and cooking water, creates a powerful combination with the previously mentioned system. The five-stage process acts as a high-quality pre-filter, protecting the delicate RO membrane and ensuring it has a long service life. The RO system then performs the final, ultimate purification, providing a nearly impenetrable barrier against the widest possible range of contaminants. This creates redundancy; if our UV lamp fails, the RO membrane will still physically block the bacteria and viruses. It is this level of certainty that we hope will provide us with peace of mind when our water source is a public canal.
Source: offgridwater.net
Summary of Further Contaminant Removal By Reverse Osmosis
- Heavy Metals (lead, mercury, cadmium, arsenic)
- Dissolved Salts
- Nitrates and Sulphates (from fertilizer runoff)
- Microplastics
- Fluoride
Further Thoughts on Water Filtration: Installation
We wanted to put this post together to collect our thoughts and gain a better understanding of what exactly we plan to build for our canal boat in terms of water filtration. There is a lot to take in. We’ve researched a number of different solutions, and they vary from simple 5-stage filter assemblies to 7-stage + UV + RO systems. These systems are not difficult to build, but we need to understand what they do before we can begin to think about how we construct such a system for a boat using canal water.
We estimate that we could build a 5-stage + UV system for around £750 using off-the-shelf components (a figure derived from cursory searches). However, we are not convinced this is enough to make it potable. We believe an additional RO system is essential.
Now that we have an understanding of what’s involved, the next step is to draw up the system and calculate its cost.
We will follow this essay with a comprehensive breakdown of our final filtration system, which includes a 6-filter + UV system before the water enters the tanks, followed by an under-the-sink 3-filter + RO unit.
